10A MECHANICAL CURTAIN SW w_ FL WE

E8732CF_WE

Load Type	curtain control system
Rated current	10 A at 250 V AC 50/60 Hz
Part Number	E8732CF_WE
Activity	HDCWD
Colour	white
depth	35.9 mm
device application	ventilation
device mounting	surface, flush
Device Presentation	complete product
Embedding Depth	23.8 mm
height	86 mm
IP degree of protection	IP20
Material	PC (polycarbonate)
product or component type	switch
range	AvatarOn
range of product	AvatarOn C
Switch Function	curtain
width	86 mm
local signalling	with light indicator, fluorescent

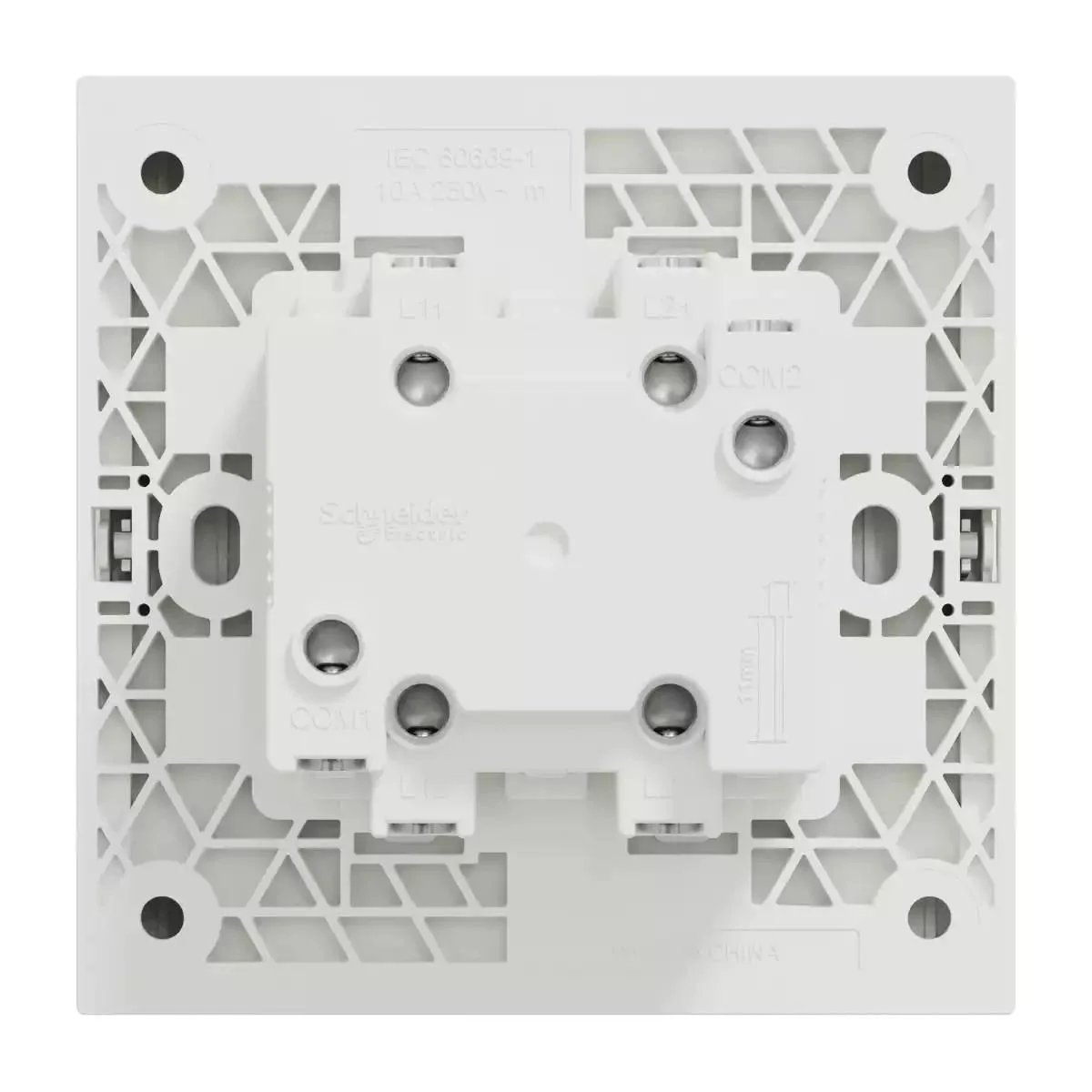

connections – terminals	screw terminal
