Schneider Activity PPCCB Part Number EZC100H3032 [ics] Rated Service Breaking Capacity 5 kA at 125 V DC conforming to IEC 60947-2, 5 kA at 250 V DC conforming to IEC 60947-2, 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA at 380…400 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 220…240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 110…130 V AC 50/60 Hz conforming to IEC 60947-2, 7.5 kA at 415 V AC 50/60 Hz conforming to IEC 60947-2 [ui] Rated Insulation Voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2 breaking capacity 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 10 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA Icu at 380…400 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA Icu at 415 V AC 50/60 Hz conforming to IEC 60947-2 Breaking Capacity Code H Circuit Breaker Name Easypact EZC100H Connection Pitch 25 mm Downside Connection front Earth-leakage Protection without Neutral Protection Setting without protection Protected Poles Description 3t suitability for isolation yes conforming to IEC 60947-2 Trip Unit Name TM-D trip unit rating 32-32 A at 50 °C trip unit technology thermal-magnetic Upside Connection front utilisation category category A Weight 795.0 g Package1 Length*Width*Height 14.0 cm x 8.5 cm x 9.5 cm Country of Manufacturing Thailand ambient air temperature for operation -25-70 °C ambient air temperature for storage -35-85 °C compatibility code EZC100 control type toggle depth 60 mm device application distribution device short name Easypact EZC100H Electrical Durability category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 height 130 mm IK degree of protection IK07 conforming to EN 50102 IP degree of protection IP20 conforming to IEC 60529 local signalling positive contact indication Market Segment small commercial mechanical durability 8500 cycles mounting mode fixed mounting support backplate network frequency 50/60 Hz network type DC, AC Poles Description 3P pollution degree 3 conforming to IEC 60947 Product Name EasyPact EZC product or component type circuit breaker Protection Type overload protection, short-circuit protection range EasyPact range of product EasyPact standards EN/IEC 60947-1, JIS C8201-2-2, EN/IEC 60947-2, GB/T 14048.2 width 75 mm ambient air temperature for operation -25-70 °C standards EN/IEC 60947-1, JIS C8201-2-2, EN/IEC 60947-2, GB/T 14048.2 local signalling positive contact indication [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 Frequently

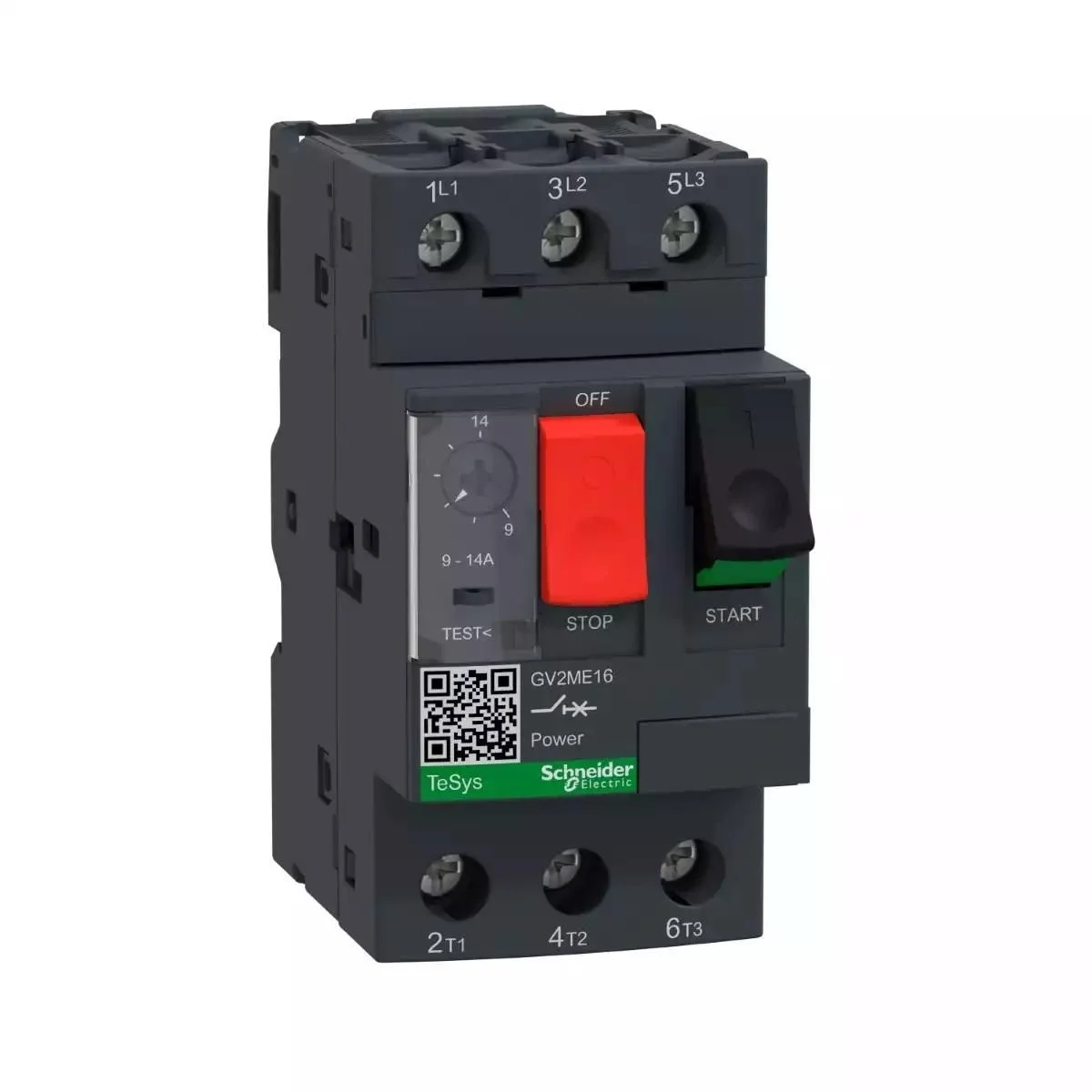

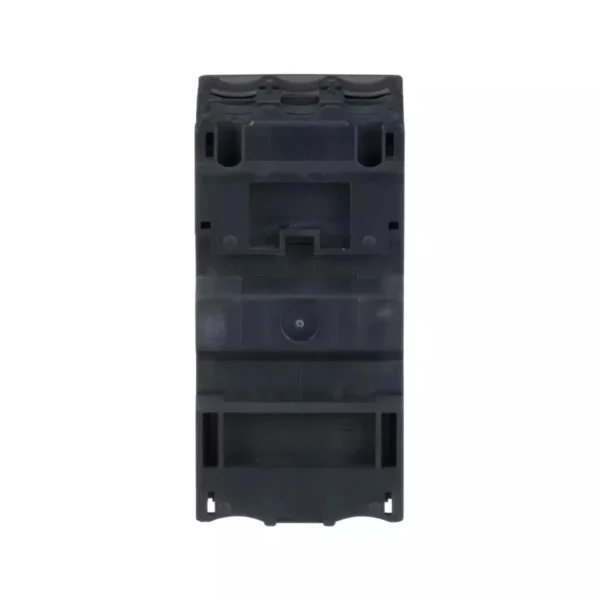

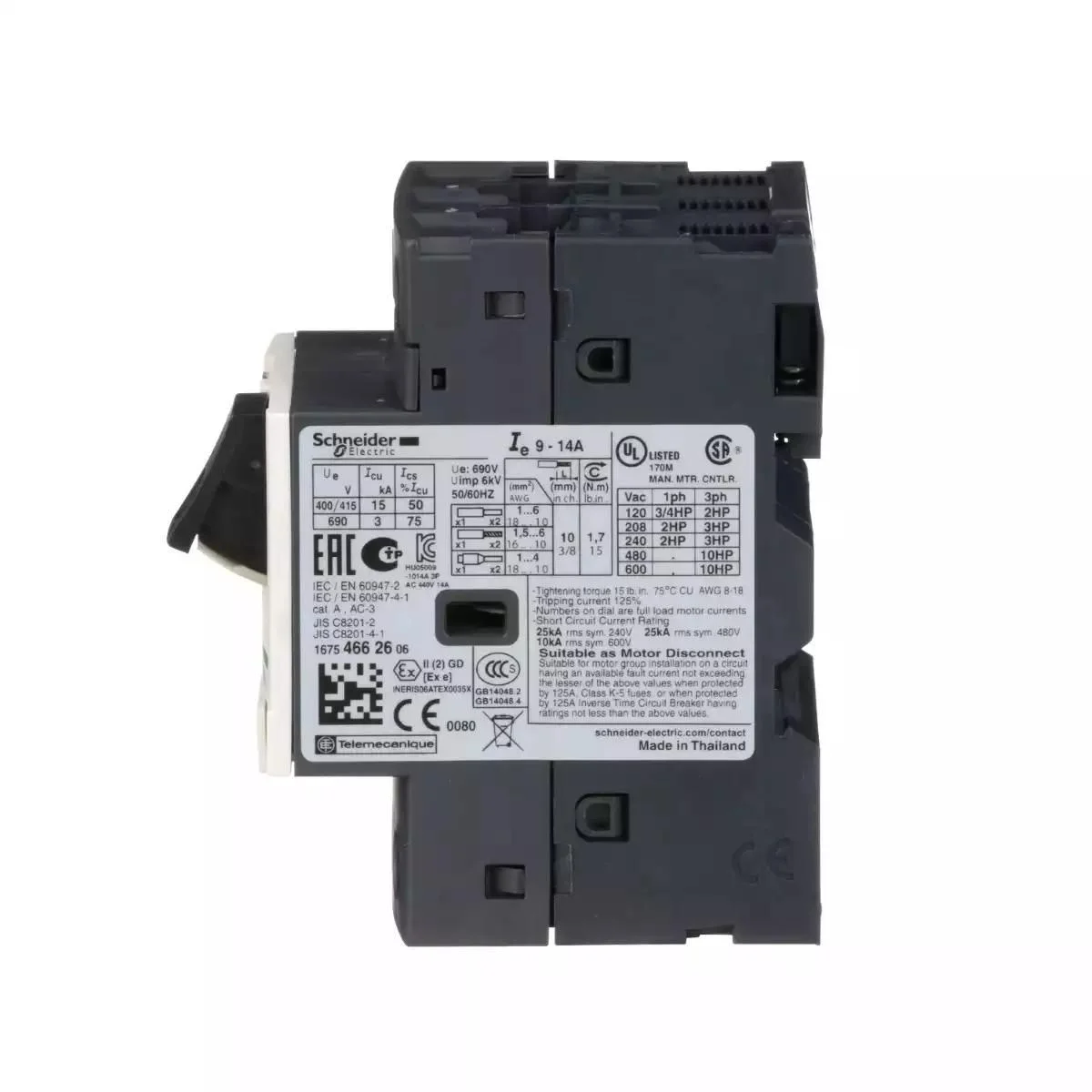

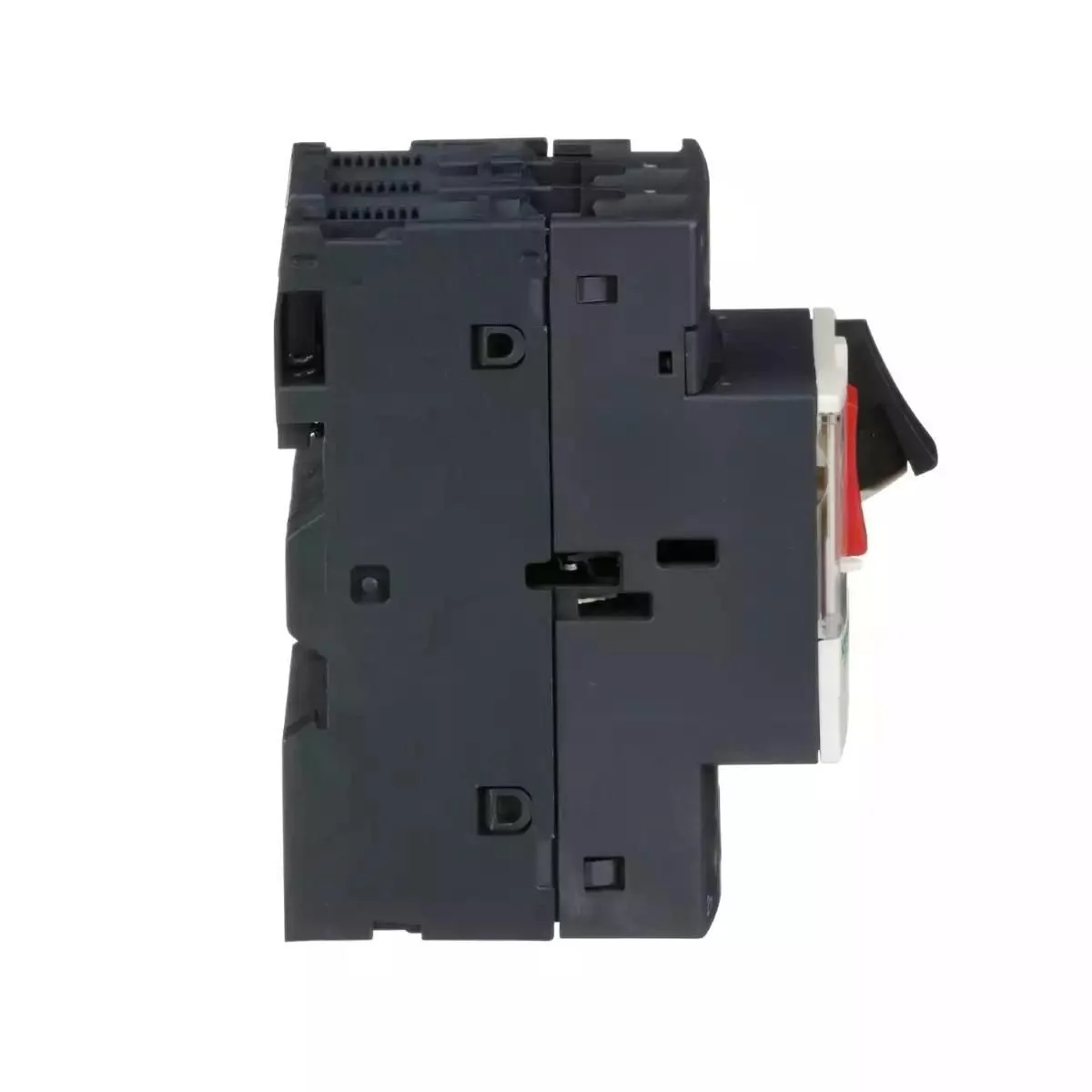

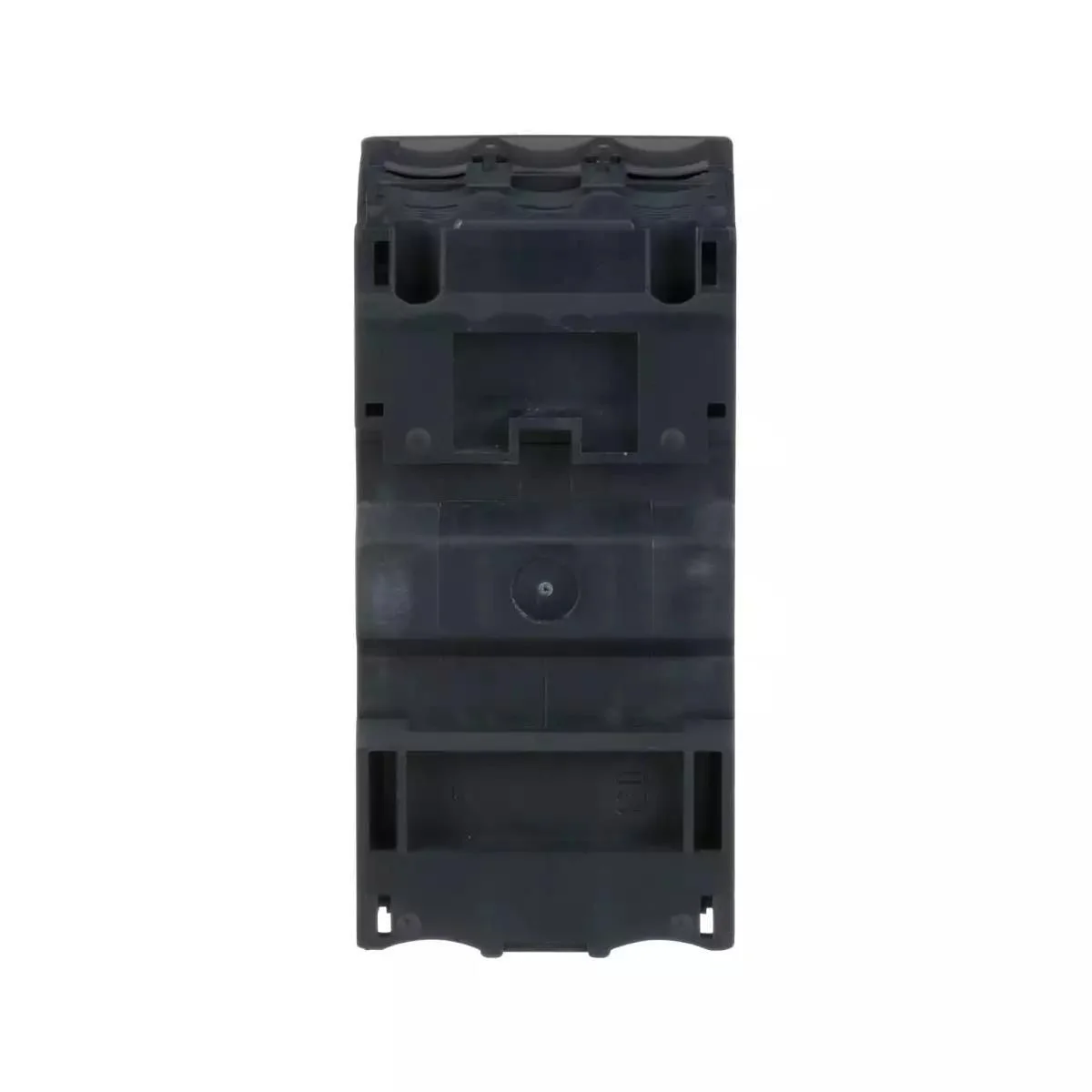

Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals
GV2ME16
Activity
PPCTR
Part Number
GV2ME16
Weight
276.0 g
Package1 Length*Width*Height
9.5 cm x 8.7 cm x 5.0 cm
Country of Manufacturing
France
Rated current
14 A
[Ith] conventional free air thermal current
14 A conforming to IEC 60947-4-1
[ue] Rated Operational Voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
ambient air temperature for operation
-20-60 °C
ambient air temperature for storage
-40-80 °C
breaking capacity
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
climatic withstand
conforming to IACS E10
colour
dark grey
compatibility code
GV2ME
control type
push-button
depth
78.5 mm
device application
motor protection
device short name
GV2ME
direct connector
without
electrical durability
100000 cycles for AC-3 at 415 V, at 415 V
fire resistance
960 °C conforming to IEC 60695-2-11
fixing mode
35 mm symmetrical DIN rail: clipped, panel: screwed (with adaptor plate)
height
89 mm
IK degree of protection
IK04
IP degree of protection
IP20 conforming to IEC 60529
magnetic tripping current
170-170 A
maximum operating rate
25 cyc/h
mechanical durability
100000 cycles
mechanical robustness
shocks: 30 Gn conforming to IEC 60068-2-27, vibrations: 5 Gn, 5…150 Hz conforming to IEC 60068-2-6
motor power kW
5.5-5.5 kW at 400/415 V AC 50/60 Hz, 7.5-7.5 kW at 500 V AC 50/60 Hz, 9-9 kW at 690 V AC 50/60 Hz, 11-11 kW at 690 V AC 50/60 Hz
category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1
width
45 mm
[Ics] rated service short-circuit breaking capacity
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
ambient air temperature for operation
-20-60 °C
standards
EN/IEC 60947-2, EN/IEC 60947-4-1
mechanical robustness
shocks: 30 Gn for 11 ms, vibrations: 5 Gn, 5…150 Hz
