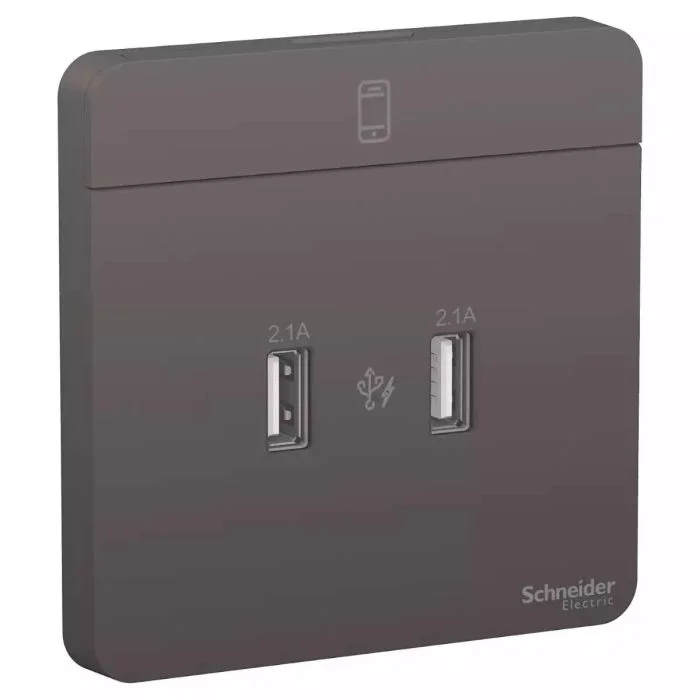

Schneider Electric AvatarOn USB charger E8332USB_DG in color dark grey is a 1-module mechanism with 2 ports. 86 mm, 86 mm, 40 mm is the dimension of this USB 2.1 charger mechanism. Its embedding depth is 29 mm. And its rated operation voltage is 100/240V and the output current is 2.1A. The mounting type of this mechanism is surface. The screw terminal connection enables the wires to be held by the tightening of a screw. Glossy surface finish makes it easy to remove and clean fingerprints and smudge marks. PC (polycarbonate) makes it as resistant and lasting as possible. Standards of IEC 60950-1 are well met. Standards of IEC 60950-1 are well met.

Part Number	E8332USB_DG
Activity	HDCWD
Weight	104.0 g
Package1 Length*Width*Height	8.5 cm x 8.5 cm x 4.5 cm
Clamping Connection Capacity	1.5…2.5 mm² for rigid cable(s), 1.5…2.5 mm² for flexible cable(s)
Colour	dark grey
Colour	Dark Grey
Connections – Terminals	screw terminal
depth	38.2 mm
device mounting	surface
Device Presentation	complete product
height	86 mm
Integrated Connection Type	2 USB port 5 V DC 2.1 A
IP degree of protection	IP20
Material	PC (polycarbonate): base
mounting support	mounting box
Number of Modules	1 module
product or component type	USB charger
range	AvatarOn
Screwdriver Shape	Phillips combined
standards	IEC 60950-1
Surface Finish	glossy
Surface Treatment	untreated
width	86 mm
Wire Stripping Length	12 mm
standards	IEC 60950-1
connections – terminals	screw terminal
