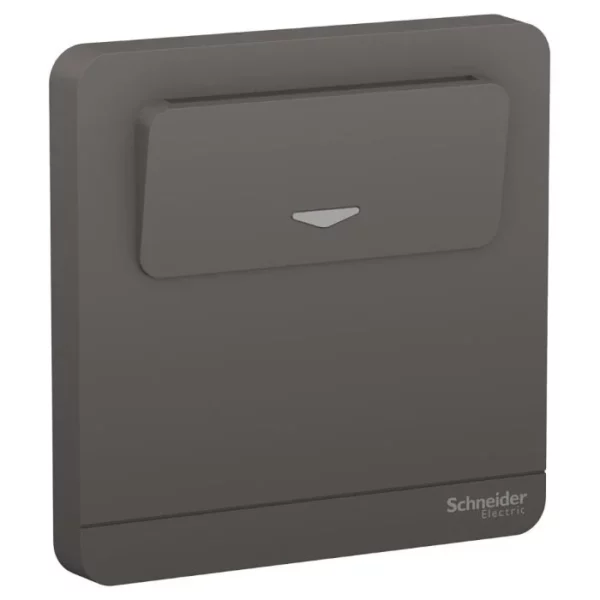

AvatarOn, card switch, 16 A, 250 V, Dark Grey

E8331EKT_DG

Load Type	resistive
Rated current	16 A at 250 V AC 50 Hz
Part Number	E8331EKT_DG
Activity	HDCWD
ambient air temperature for storage	0-60 °C
Clamping Connection Capacity	3 x 4 mm² for solid cable(s), 3 x 4 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s)
Colour	dark grey
depth	43.8 mm
device application	hotel
device mounting	flush, surface
Device Presentation	complete product
Embedding Depth	34.1 mm
height	86 mm
IP degree of protection	IP20
Material	polycarbonate: plastic part
product or component type	card switch
range	AvatarOn
relative humidity	0-95 %
width	86 mm
ambient air temperature for operation	0-40 °C
standards	IEC 60669-2-1
status LED	LED (amber)
connections – terminals	brass terminal
