Schneider AvatarOn, data socket, RJ45, cat6e, shuttered, Dark Grey E8331RJS6_DG
AED25.00 AED32.00

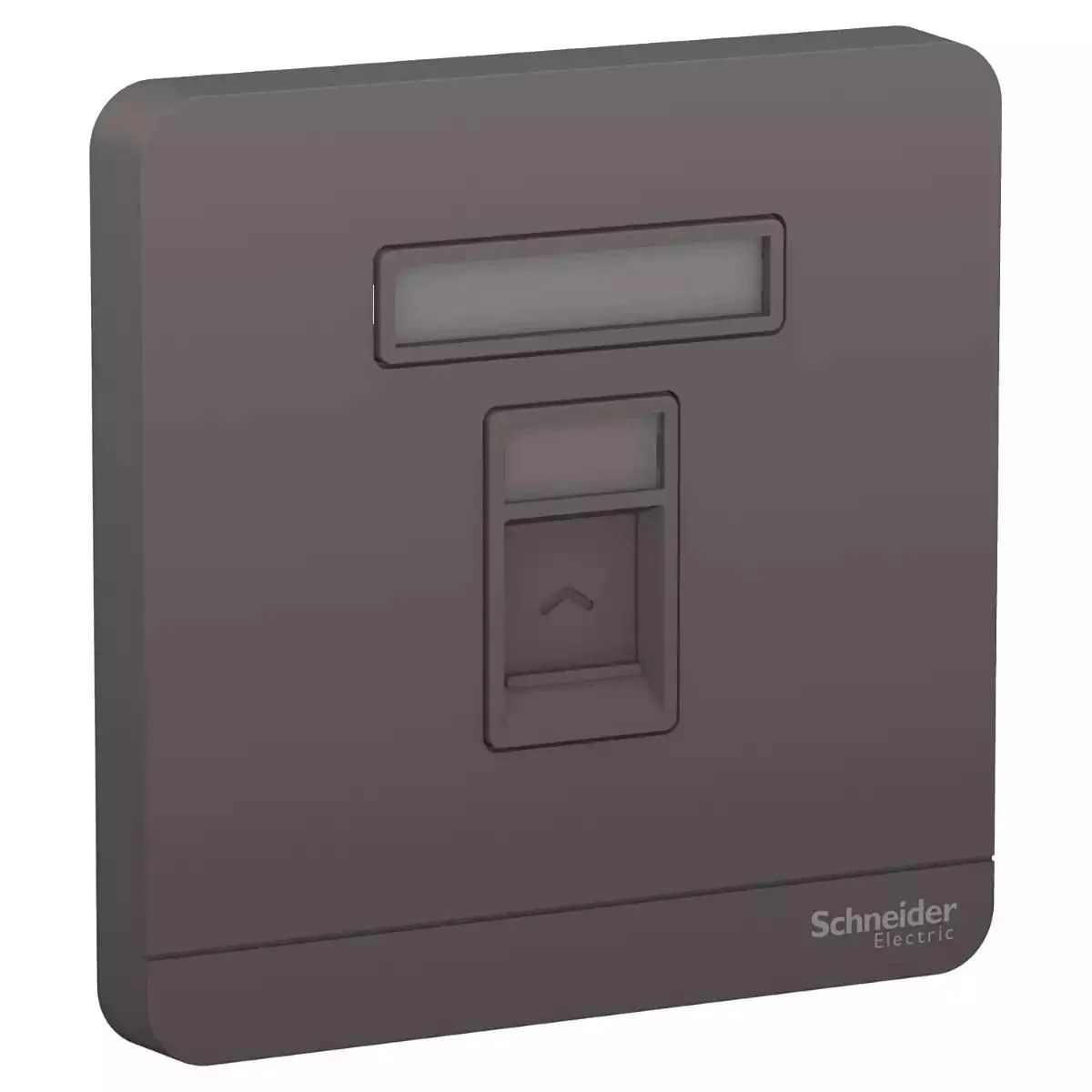

AvatarOn, data socket, RJ45, cat6e, shuttered, Dark Grey
E8331RJS6_DG
| Rated current | 1.5 A |
|---|---|
| Part Number | E8331RJS6_DG |
| Activity | HDCWD |
| Awg Gauge | AWG 26…AWG 22 (4 twisted pair cables) |
| Colour | dark grey |
| Communication Network Category | data: 6e |
| Contact Resistance | 1 µOhm |
| contacts material | housing: PC, contact: phosphor bronze with gold plating |
| Data Socket Type | RJ45 |
| depth | 31 mm |
| device application | communication |
| device mounting | flush, surface |
| Device Presentation | complete product |
| dielectric strength | 1000 V for 60 s at 60 Hz |
| height | 86 mm |
| IP degree of protection | IP20 |
| Material | polycarbonate: plastic part |
| Maximum Ambient Air Temperature for Operation | 35 °C |
| Minimum Return Loss | 23 dB |
| Number of Gangs | 1 gang |
| product or component type | data socket |
| range | AvatarOn |
| relative humidity | 0-95 % |
| Socket Additional Information | shuttered |
| width | 86 mm |
| standards | TIA/EIA-568-B.2-1, ASTMD4566-98 |
| environmental characteristic | no UV resistant |
| insulation resistance | >= 200 MOhm |
