Electrical Items, Schneider electric, Switches & Sockets

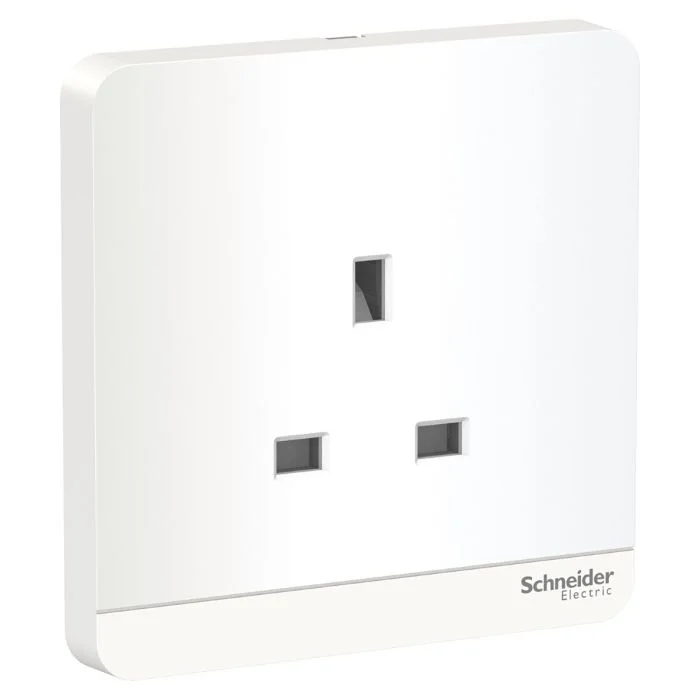

Schneider AvatarOn, socket-outlet, 13A, 3P, British BS 1363A, White E83426_WE_G12
AED37.00 AED48.00
AvatarOn, socket-outlet, 13A, 3P, British BS 1363A, White
E83426_WE_G12
| Load Type | no inductive load |
|---|---|
| Rated current | 13 A at 250 V AC 50 Hz |
| Part Number | E83426_WE_G12 |
| Activity | HDCWD |
| ambient air temperature for storage | -5-60 °C |
| Clamping Connection Capacity | 1 x 4…2 x 4 mm² for solid cable(s), 1 x 4…2 x 4 mm² for stranded cable(s), 1 x 2.5…3 x 2.5 mm² for solid cable(s), 1 x 2.5…3 x 2.5 mm² for stranded cable(s) |
| Colour | white |
| depth | 27.8 mm |
| device application | power supply |
| device mounting | surface |
| Device Presentation | complete product |
| height | 86 mm |
| IP degree of protection | IP20 |
| Material | polycarbonate grid plate, polycarbonate surround, polycarbonate cover |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Outlet Poles Configuration | 3P |
| product certifications | SIRIM |
| product or component type | socket-outlet |
| range | AvatarOn |
| relative humidity | 0-95 % |
| Socket Number | 1 |
| Socket-outlet Type | shuttered |
| width | 86 mm |
| Outlet standard deviation | British BS 1363A |
| standards | SS 145, BS 1363, MS 589 |
| environmental characteristic | UV resistant |
| connections – terminals | folded terminal |
