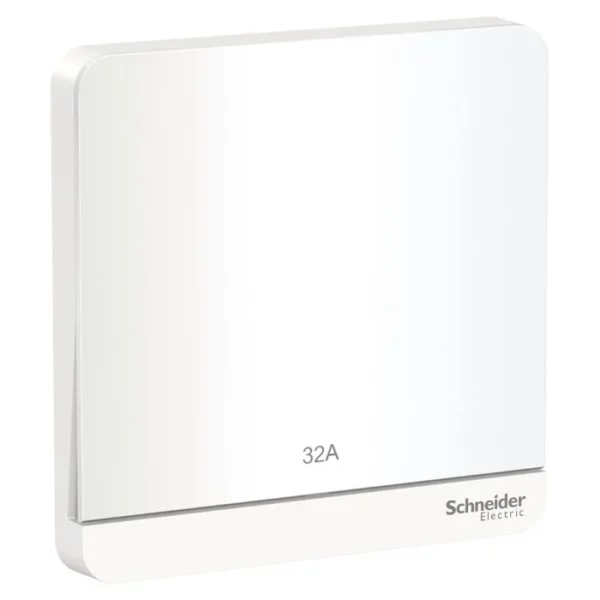

AvatarOn, switch, 32A, 250V, 2P, LED, White

E8331D32N_WE

Load Type	fluorescent lamps, serial boost load (SBL), resistive, small motor load, incandescent lamp
Rated current	32 A at 250 V AC 50/60 Hz
Part Number	E8331D32N_WE
Activity	HDCWD
Clamping Connection Capacity	4 x 4 mm² for stranded cable(s), 1 x 10 mm² for stranded cable(s), 1 x 16 mm² for stranded cable(s)
Colour	white
depth	32 mm
device application	control
device mounting	flush
Device Presentation	complete product
height	86 mm
IP degree of protection	IP20
Material	polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator
Maximum Ambient Air Temperature for Operation	45 °C
Number of Gangs	1 gang
Number of Rocker	1
operating altitude	2000 m
product or component type	switch
range	AvatarOn
relative humidity	0-95 %
Switch Function	2-pole 1-way
width	86 mm
standards	BS EN 60669-1, SS 227-1, MS IEC 60669-1, IEC 60669-1
local signalling	on: LED indicator, LED (amber)
environmental characteristic	UV resistant
connections – terminals	brass terminal
