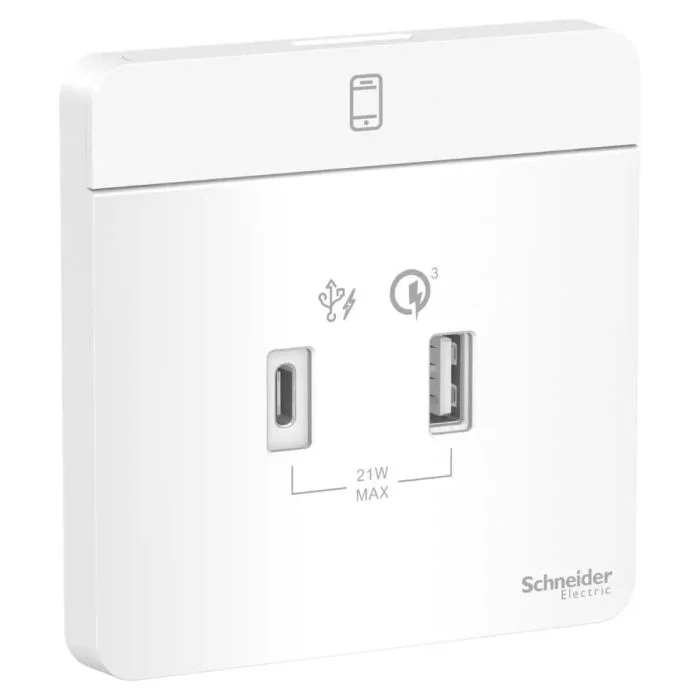

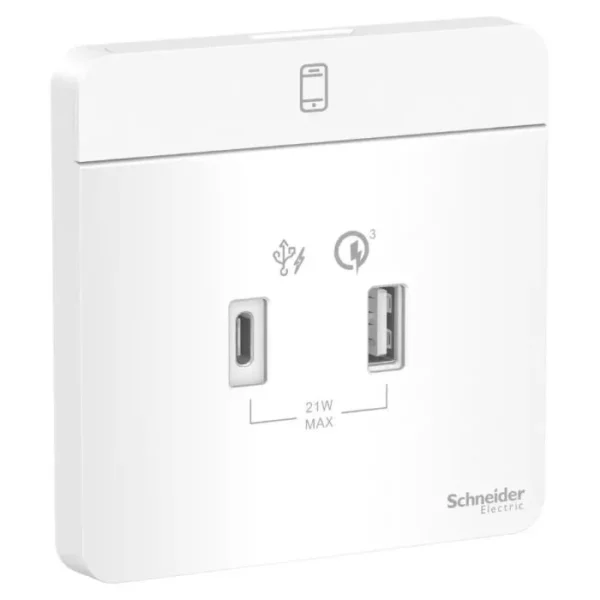

Schneider Electric AvatarOn USB charger E8332USB_WE in color white is a 1-module mechanism with 2 ports. The dimension of this USB 2.1 charger is 86 mm, 86 mm and 40 mm. The embedding depth is 29 mm. And the output current of this device is 2.1A, the rated operating voltage is 100/240V. Surface mounting is the mounting type of this USB charger mechanism. The screw terminal connection enables the wires to be held by the tightening of a screw. The glossy surface finish helps gain this device aesthetic point, at the same time make it easy to be cleaned. It is made of PC (polycarbonate), without making it turn into yellow over time. What’s more, it well satisfied standards of IEC 60950-1. What’s more, it well satisfied standards of IEC 60950-1.

Rated current	25 A at 250 V AC 50 Hz
Part Number	E8332USB_WE
Activity	HDCWD
Weight	104.0 g
Package1 Length*Width*Height	8.6 cm x 8.6 cm x 3.4 cm
[ue] Rated Operational Voltage	100/240 V AC 50/60 Hz
Clamping Connection Capacity	1.5…2.5 mm² for flexible cable(s), 1.5…2.5 mm² for rigid cable(s)
Colour	white
Colour	White
Connections – Terminals	screw terminals
depth	40 mm
device mounting	flush
Device Presentation	complete product
Electrical Insulation Class	class II
height	86 mm
Integrated Connection Type	2 USB type A 5 V DC, maximum load current: 2.1 A
IP degree of protection	IP20
Material	PC (polycarbonate)
Output Current	2.1 A
product or component type	USB charger
range	AvatarOn
Screwdriver Shape	Phillips combined
standards	IEC 60950-1
Surface Finish	glossy
width	86 mm
standards	IEC 60950-1
connections – terminals	screw terminals
