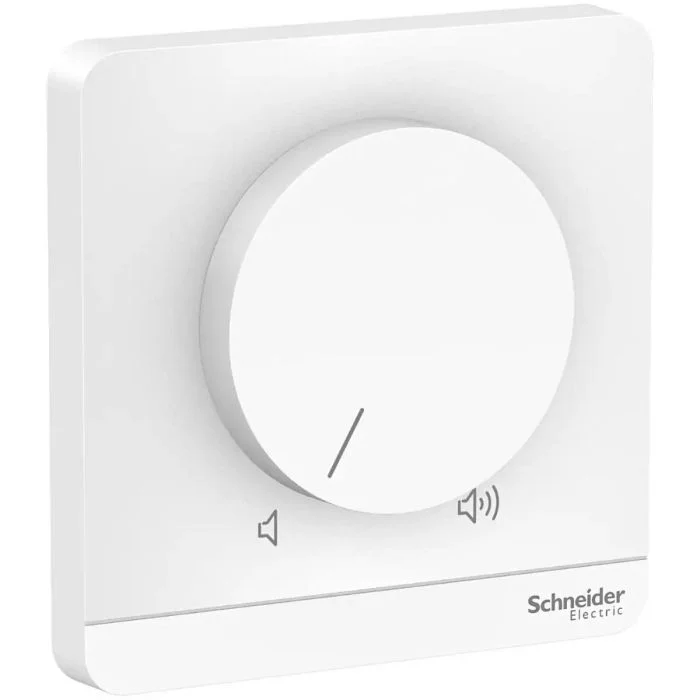

Schneider Electric AvatarOn E8331VC_WE in color white is a volume control. It features a sleek design, with many different colors to choose from, gaining your room added beauty and variety. The average impedance of this volume control is 80 Ohm. The rated operating power is 5W. This volume controller enables both flush and surface mounting. It is 86 mm in width, 86 mm in height and 27 mm in depth. And PC (polycarbonate) material makes it as resistant and lasting as possible.

Rated current	20 A at 250 V AC
Part Number	E8331VC_WE
Activity	HDCWD
Weight	104.0 g
Package1 Length*Width*Height	8.6 cm x 8.6 cm x 4.0 cm
ambient air temperature for operation	0-45 °C
average impedance	8 Ohm
Colour	white
Colour	White
depth	27 mm
device mounting	flush, surface
Device Presentation	complete product
height	86 mm
IP degree of protection	IP20
Material	polycarbonate: surround, polycarbonate: grid plate
product or component type	volume control
range	AvatarOn
Rated Operational Power in w	5 W
relative humidity	0-95 %
width	86 mm
ambient air temperature for operation	0-45 °C
