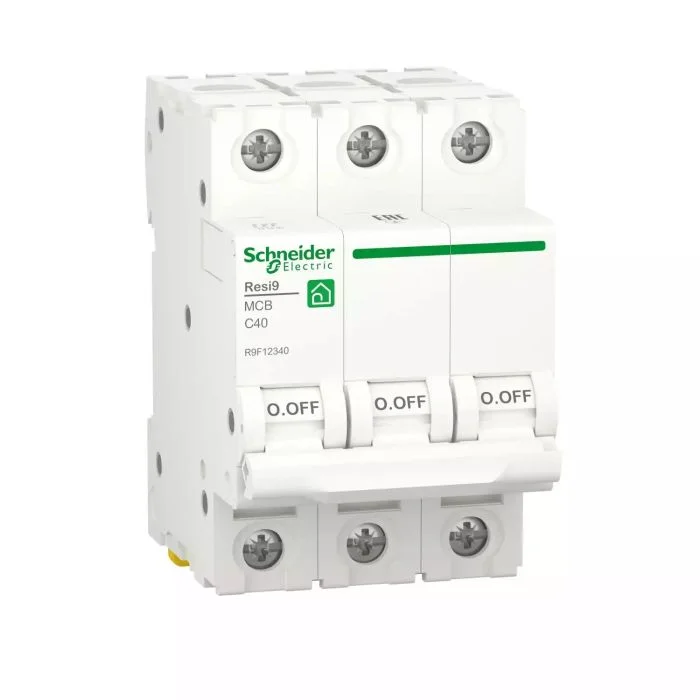

Miniature circuit breaker (MCB), Resi9, 3P, 40A, C curve, 6000A (IEC/EN 60898-1)

R9F12340

This Resi9 product is a low voltage miniature circuit breaker (MCB)
It is a 3P circuit breaker with 3 protected poles and 40A In rated current and C tripping curve
The Icn rated short circuit breaking capacity is up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard
This product is compliant with EN/IEC 60898-1 standard
This miniature circuit breaker protects circuit against short circuit and overload current
The Resi9 is targeted to residential for individual and collective buildings
It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles
The Ue operational voltage is 400VAC
The Ui rated insulation voltage is 440VAC
The operating frequency is 50Hz or 60Hz
It can be mounted on DIN rail for modular installation
Its width is 6 pitches of 9mm
The product colour is white (RAL9003)
The dimensions are (W) 54mm x (H) 81mm x (D) 72mm
According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure
The operating temperature is -25°C to 60°C
The storage temperature is -40°C to 60°C

Activity	HDCFD
Part Number	R9F12340
[Uimp] rated impulse withstand voltage	4 kV
9 Mm Pitches	6
breaking capacity	6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Connection Pitch	18 mm between phases
Curve Code	C
Earth-leakage Protection	without
Limitation Class	3 conforming to EN/IEC 60898-1
Magnetic Tripping Limit	5…10 x In AC
Number of Protected Poles	3
overvoltage category	III
trip unit technology	thermal-magnetic
Tropicalisation	2 conforming to IEC 60068-1
ambient air temperature for storage	-40-60 °C
colour	white (RAL 9003)
connections – terminals	tunnel type terminals (top or bottom) – 1…35 mm² – rigid, tunnel type terminals (top or bottom) – 1…25 mm² – flexible with ferrule, tunnel type terminals (top or bottom) – 1…25 mm² – flexible
control type	toggle
depth	72 mm
device application	protection
Electrical Durability	10000 cycles
height	81 mm
IP degree of protection	IP20
mechanical durability	20000 cycles
mounting mode	clip-on
mounting support	DIN rail
net weight	360 g
network frequency	50/60 Hz
network type	AC
Poles Description	3P
pollution degree	2 conforming to EN/IEC 60898-1
product or component type	miniature circuit-breaker
Quality Labels	EAC, UA TR
range	Resi9
relative humidity	95-95 % at 55-55 °C
width	54 mm
Wire Stripping Length	14 mm
ambient air temperature for operation	-25-60 °C
standards	EN/IEC 60898-1
local signalling	ON/OFF indication
Embedding Depth	44 mm
[Ui] rated insulation voltage	440 V AC
tightening torque	3.5-3.5 N.m
