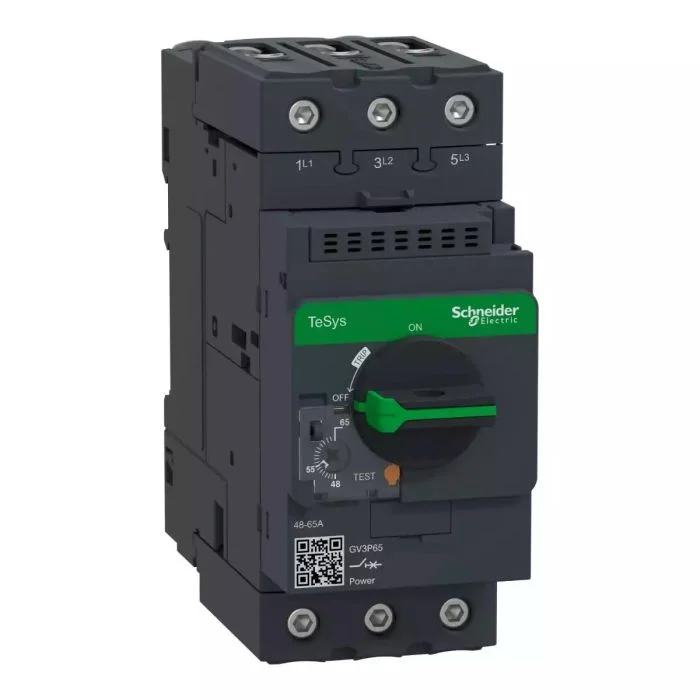

Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals

GV3P65

TeSys GV motor circuit breaker, 3 poles (3P), 65A/690V, for 3-phase motor applications 30kW@400V. It provides a thermal-magnetic protection with a thermal setting range 48-65A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Activity	PPCTR
Part Number	GV3P65
Weight	1.016 kg
Package1 LengthWidthHeight	14.6 cm x 6.5 cm x 16.0 cm
Country of Manufacturing	France
Rated current	65 A
[Ith] conventional free air thermal current	65 A conforming to IEC 60947-4-1
[ue] Rated Operational Voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
ambient air temperature for operation	-20-60 °C
ambient air temperature for storage	-40-80 °C
breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
climatic withstand	conforming to IACS E10
colour	dark grey
compatibility code	GV3P
control type	rotary handle
depth	136 mm
device application	motor protection
device short name	GV3P
direct connector	without
electrical durability	50000 cycles for AC-3 at 415 V In
fire resistance	960 °C conforming to IEC 60695-2-11
fixing mode	35 mm symmetrical DIN rail: clipped, panel: screwed (with 3 x M4 screws)
height	132 mm
IK degree of protection	IK09 enclosure
IP degree of protection	IP20 conforming to IEC 60529
magnetic tripping current	910-910 A
maximum operating rate	25 cyc/h
mechanical durability	50000 cycles
mechanical robustness	shocks: 15 Gn for 11 ms closed conforming to IEC 60068-2-27, shocks: 30 Gn for 11 ms opened conforming to IEC 60068-2-27, vibrations: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6
motor power kW	30-30 kW at 400/415 V AC 50/60 Hz, 45-45 kW at 500 V AC 50/60 Hz, 55-55 kW at 690 V AC 50/60 Hz
net weight	0.96 kg
network frequency	50/60 Hz conforming to IEC 60947-4-1
network type	AC
operating altitude	3000 m
operating position	any position
phase failure sensitivity	yes conforming to IEC 60947-4-1
Poles Description	3P
power dissipation per pole	8 W
product certifications	CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
product or component type	motor circuit breaker
range	TeSys Deca
range of product	TeSys GV3
rated duty	continuous conforming to IEC 60947-4-1
rated operational voltage limits	690 V AC 50/60 Hz conforming to IEC 60947-2
standards	EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
suitability for isolation	yes conforming to IEC 60947-1
thermal protection adjustment range	48-65 A conforming to IEC 60947-4-1
tightening torque	5 N.m – on screw clamp terminal
trip unit rating	48-65 A
trip unit technology	thermal-magnetic
utilisation category	AC-3 conforming to IEC 60947-4-1
width	55 mm
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
ambient air temperature for operation	-20-60 °C
standards	EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
mechanical robustness	shocks: 15 Gn for 11 ms contactor open, shocks: 30 Gn for 11 ms contactor closed, vibrations: 4 Gn, 5…300 Hz
Electrical Durability	50000 cycles for AC-3 at 415 V In
