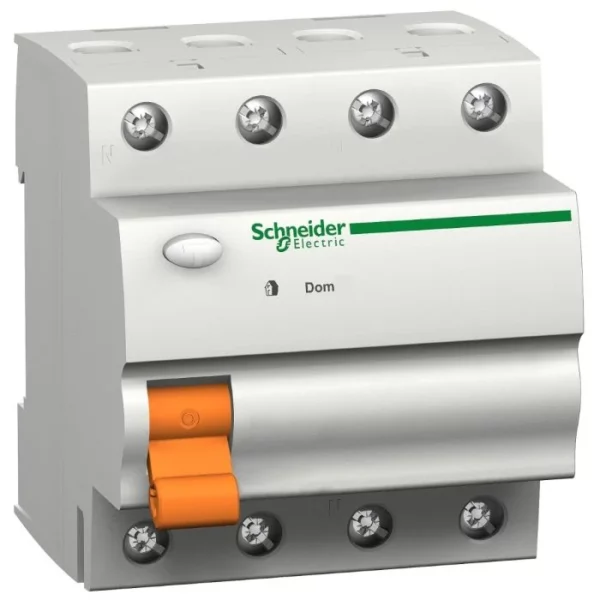

residual current circuit breaker – 4 poles – 40 A – class AC 100 mA

16814

Activity	HDCFD
Part Number	16814
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 61008-1
9 Mm Pitches	8
Comb Busbar and Distribution Block Compatibility	YES
Connection Pitch	18 mm between phase and neutral
Contact Position Indicator	yes
Device Location in System	outgoer
Earth-leakage Protection Class	type AC
Earth-leakage Protection Time Delay	instantaneous
Earth-leakage Sensitivity	100 mA
Neutral Position	left
Rated Breaking and Making Capacity	Im = 500 A 230 V conforming to IEC 61008-1
Rated Conditional Short-circuit Current	Inc 3000 A 40 A
Residual Current Tripping Technology	electromechanical
Tropicalisation	2 conforming to IEC 61008
ambient air temperature for storage	-40-60 °C
compatibility code	DOMAE_RCCB
connections – terminals	tunnel type terminals (downstream) 1-25 mm² flexible, tunnel type terminals (downstream) 1-35 mm² rigid, tunnel type terminals (upstream) 1-25 mm² flexible, tunnel type terminals (upstream) 1-35 mm² rigid
control type	toggle
depth	76 mm
device short name	RCCB
Electrical Durability	2000 cycles 400 V AC 50 Hz conforming to IEC 61008-1
height	81 mm
IP degree of protection	IP20 conforming to IEC 60529
mechanical durability	5000 cycles
mounting mode	fixed
mounting support	35 mm symmetrical DIN rail
net weight	0.35 kg
network frequency	50 Hz
network type	AC
operating altitude	2000 m
Poles Description	4P
product certifications	VDE
product or component type	residual current circuit breaker (RCCB)
range	Domae
range of product	Domae
width	72 mm
ambient air temperature for operation	-5-40 °C
standards	IEC 61008-1, IEC 60529, IEC 60068-1
[Ui] rated insulation voltage	440 V AC 50 Hz conforming to IEC 61008-1
