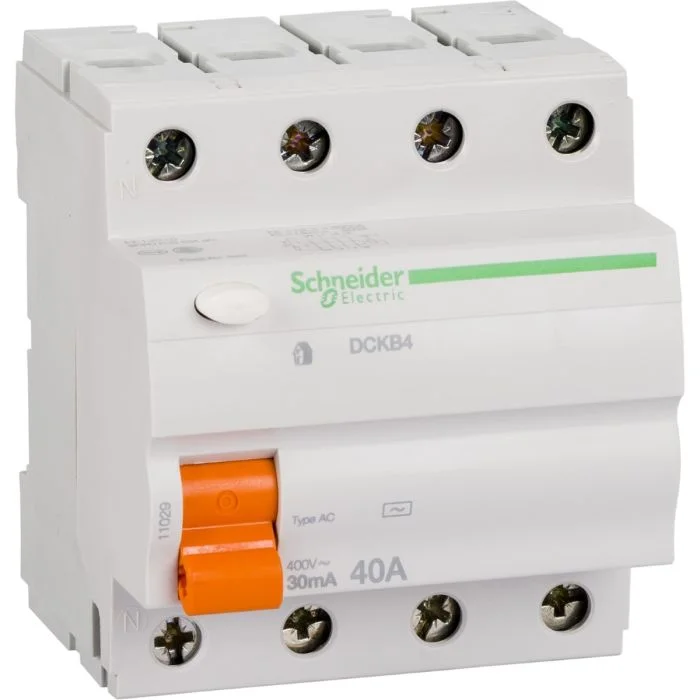

residual current circuit breaker – 4 poles – 40 A – class AC 30 mA

11029

Activity	HDCFD
Part Number	11029
[Uimp] rated impulse withstand voltage	4 kV
9 Mm Pitches	8
Connection Pitch	18 mm between phase and neutral
Device Location in System	outgoer
Earth-leakage Protection Class	type AC
Earth-leakage Protection Time Delay	instantaneous
Earth-leakage Sensitivity	30 mA
Neutral Position	left
Rated Conditional Short-circuit Current	6 kA 40 A
Residual Current Tripping Technology	electromechanical
Tropicalisation	2 conforming to IEC 61008
ambient air temperature for storage	-40-60 °C
compatibility code	DOMAE_RCCB
connections – terminals	tunnel type terminals (downstream) 25-25 mm² flexible, tunnel type terminals (downstream) 35-35 mm² rigid, tunnel type terminals (upstream) 25-25 mm² flexible, tunnel type terminals (upstream) 35-35 mm² rigid
control type	toggle
depth	76 mm
device short name	RCCB
height	81 mm
mounting mode	fixed
mounting support	35 mm symmetrical DIN rail
network frequency	50/60 Hz
network type	AC
operating altitude	2000 m
Poles Description	4P
pollution degree	2
product or component type	residual current circuit breaker (RCCB)
range	Domae
range of product	Domae
width	72 mm
ambient air temperature for operation	-5-40 °C
standards	IEC 61008
[Ui] rated insulation voltage	440 V
