Residual current circuit breaker (RCCB), Resi9, 4P, 63A, AC type, 30mA

R9R51463

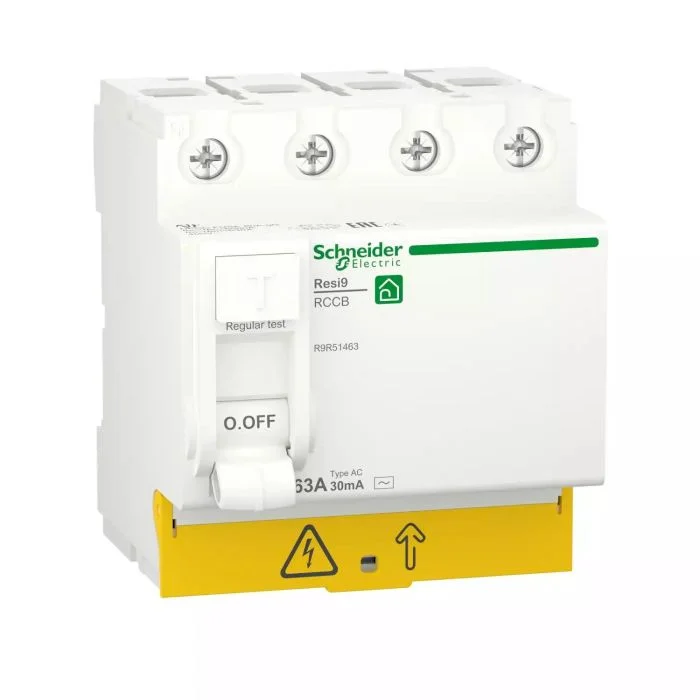

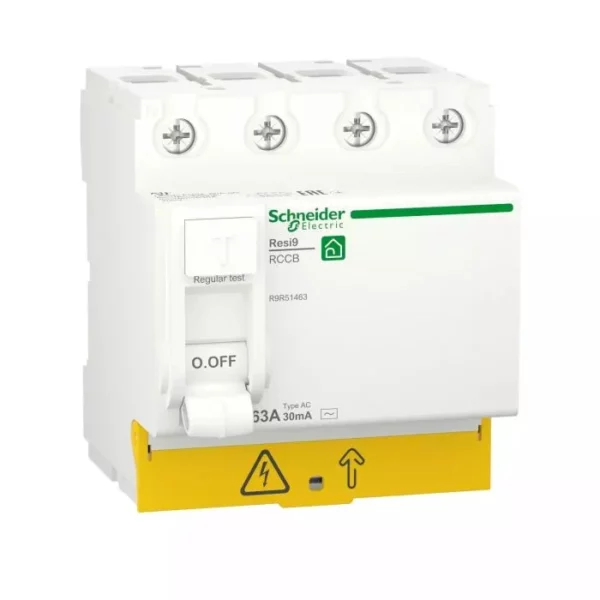

This is a Resi9 RCCB residual current circuit breaker (RCCB)
It is a 4P circuit breaker with In rated current of 63A, AC type protection class and a 30mA earth leakage sensitivity
This product protects against electrical shock by direct or indirect contact and fire hazards
As an high sensitivity residual current circuit breaker, it is recommended for all power sockets
It is also compulsory for all equipment in bathrooms, outdoors
The Resi9 is targeted to the residential market for individual and collective buildings
This product is compliant with EN/IEC 61008-2-1 standard
The (Inc/IΔc) conditional rated short circuit current is 6000 A
The (Im/IΔm) rated making and breaking capacity is 630A
The electrical endurance is up to 10000 cycles
The mechanical endurance is up to 20000 cycles
The Ue operational voltage is 400VAC
It is DIN rail mountable
The width in 9mm pitches is 8
The product colour is white (RAL9003)
The dimensions are (W) 72mm x (H) 82mm x (D) 73mm
It has an IP20 degree of protection
It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard
The operating temperature is from -5°C to 40°C
The storage temperature is from -40°C to 80°C

Activity	HDCFD
Part Number	R9R51463
[Uimp] rated impulse withstand voltage	4 kV
9 Mm Pitches	8
Connection Pitch	18 mm
Earth-leakage Protection Class	type AC
Earth-leakage Protection Time Delay	instantaneous
Earth-leakage Sensitivity	30 mA
overvoltage category	III
Rated Breaking and Making Capacity	Im 630 A conforming to EN/IEC 61008
Rated Conditional Short-circuit Current	Inc 6 kA
Residual Current Tripping Technology	voltage independent
Surge Current	250 A
Tropicalisation	2 conforming to IEC 60068-1
ambient air temperature for storage	-40-80 °C
colour	white
connections – terminals	tunnel type terminals (top or bottom) – 1…35 mm² – rigid, tunnel type terminals (top or bottom) – 1…25 mm² – flexible, tunnel type terminals (top or bottom) – 1…25 mm² – flexible with ferrule
control type	toggle
depth	73 mm
Electrical Durability	10000 cycles
height	81 mm
IP degree of protection	IP20
mechanical durability	20000 cycles
mounting mode	clip-on
mounting support	DIN rail
net weight	370 g
network frequency	50/60 Hz
network type	AC
Poles Description	4P
pollution degree	2
product or component type	residual current circuit breaker (RCCB)
Quality Labels	EAC, UA TR
range	Resi9
relative humidity	95-95 % at 55-55 °C
width	72 mm
Wire Stripping Length	15 mm for top or bottom connection
ambient air temperature for operation	-5-40 °C
standards	EN/IEC 61008-1, EN/IEC 61008-2-1
local signalling	ON/OFF indication
Embedding Depth	44 mm
[Ui] rated insulation voltage	440 V
tightening torque	3.5-3.5 N.m top or bottom
