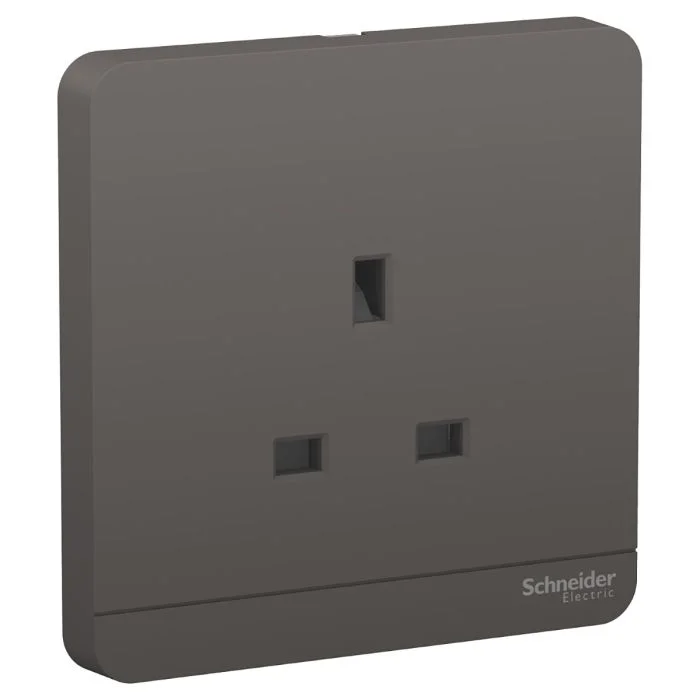

Schneider Socket-outlet, AvatarOn, complete product, 3P, British BS 1363A, folded terminal dark grey E83426_DG
AED29.00 AED37.00
Socket-outlet, AvatarOn, complete product, 3P, British BS 1363A, folded terminal dark grey
E83426_DG
| Load Type | no inductive load |
|---|---|
| Rated current | 13 A at 250 V AC 50 Hz |
| Part Number | E83426_DG |
| Activity | HDCWD |
| ambient air temperature for storage | -5-60 °C |
| Clamping Connection Capacity | 1 x 4…2 x 4 mm² for solid cable(s), 1 x 4…2 x 4 mm² for stranded cable(s), 1 x 2.5…3 x 2.5 mm² for solid cable(s), 1 x 2.5…3 x 2.5 mm² for stranded cable(s) |
| Colour | dark grey |
| depth | 27.8 mm |
| device application | power supply |
| device mounting | surface |
| Device Presentation | complete product |
| height | 86 mm |
| IP degree of protection | IP20 |
| Material | polycarbonate grid plate, polycarbonate surround, polycarbonate cover |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Outlet Poles Configuration | 3P |
| product certifications | SIRIM |
| product or component type | socket-outlet |
| range | AvatarOn |
| relative humidity | 0-95 % |
| Socket Number | 1 |
| Socket-outlet Type | shuttered |
| width | 86 mm |
| Outlet standard deviation | British BS 1363A |
| standards | MS 589, SS 145, BS 1363 |
| environmental characteristic | UV resistant |
| connections – terminals | folded terminal |
