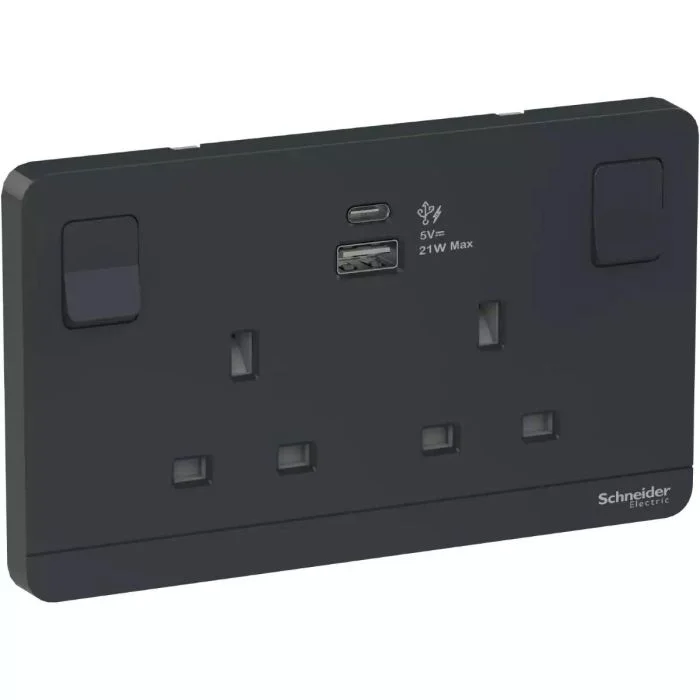

Schneider Switched socket with USB charger, Avataron, 21W type A+C, 2 gang, 13A, dark grey E83T25ACUSB_DG_G12
, ,

Schneider Switched socket with USB charger, Avataron, 21W type A+C, 2 gang, 13A, dark grey E83T25ACUSB_DG_G12

AED349.00 AED458.00

Order Now 🔥...

Switched socket with USB charger, Avataron, 21W type A+C, 2 gang, 13A, dark grey

E83T25ACUSB_DG_G12
Load Typeno inductive load
Rated currentpower circuit: 13 A 240 V, AC, 50 Hz
Part NumberE83T25ACUSB_DG_G12
ActivityHDCWD
Weight202.0 g
Package1 Length*Width*Height17.2 cm x 8.6 cm x 3.7 cm
[ue] Rated Operational Voltage240 V AC 50 Hz
ambient air temperature for operation0-40 °C
ambient air temperature for storage-5-60 °C
Clamping Connection Capacity1 x 4 mm² for solid cable(s)
Colourdark grey
ColourDark Grey
Connector TypeUSB type A, USB type C
depth32 mm
device mountingflush 47 mm
Device Presentationcomplete mechanism
Electrical Connection3 screw terminal
Embedding Depth24 mm
fixing center120.6 mm
fixing modeby screws M3.5 x 25 mm
height147 mm
Input Power30 W
Integrated Connection Type2 USB port 5 V DC, maximum load current: 3.1 A
IP degree of protectionIP20
MaterialPC (polycarbonate) 2407 Bayer: grid plate
mounting supportmounting box conforming to BS 4662
net weight0.2 kg
Number of Gangs2 gangs
Number of Power Socket Outlets2 x 2 x 2P + E with shutters, British
operating altitude<= 2000 m
Power Consumption in w21 W
product certificationsIEC
product or component typeswitched socket with USB charger
Protection TypeUSB port: over temperature protection with PWM IC circuit
rangeAvatarOn
relative humidity0-95 %
Screwdriver ShapePhilips
shape of screw headcross
Socket Additional Informationshuttered
standardsBS 1363-2
Surface Finishglossy
Surface Treatmentpainted
Switch FunctionON/OFF power-socket outlet
width87 mm
Wire Stripping Length10-12 mm
ambient air temperature for operation0-40 °C
standardsBS 1363-2
